How much force can concrete anchors hold?

These concrete anchor bolts, or bolt anchors for wood, are available in several sizes and will hold up to 200 lbs. The sleeves pinch the sides of the predrilled hole and get tighter as you tighten the screw or bolt. Best uses: Concrete, concrete block, mortar and brick.

What are the strongest concrete anchors?

Wedge anchors are typically the strongest anchors, but not every application requires a heavy-duty anchor. Some will do just fine with a plastic wall anchor or a nail-in version.

How much weight can sleeve anchors hold?

Generally speaking, sleeve anchors fall into the medium-duty territory or up to 200 pounds of weight that can be secured safely.

What is the strongest drywall anchor?

Traditional metal toggle bolts are the strongest of the bunch, but they're not the simplest to install because they require drilling a hole that's approximately three times wider than the diameter of the bolt (necessary to insert the anchor).

Red Head Trubolt Installation Tutorial

Are Tapcon screws better than anchors?

Tapcon and wedge anchors are pre-installed mechanical anchors that attach structural objects to concrete structures. However, the wedge anchor suits heavier-duty applications, vs the Tapcon anchor that typically serve lighter deployments. Another difference between them is in their fastening method.

What is the difference between a concrete fastener and a concrete anchor?

A concrete fastener of any type only holds as well as the base material in which it has been fastened. In most cases, the base material gives out, not the anchor itself. When properly set, the concrete fastener pulled to the ultimate load capacity of the anchor will pull out the base material adhered to the anchor.

How deep should anchor bolts be in concrete?

The hole needs to be drilled 1/4" deeper than the anchor will penetrate. The hole can't be drilled while the fixture is in place due to the fact that the hole is larger than the diameter of the bolt being inserted into it.

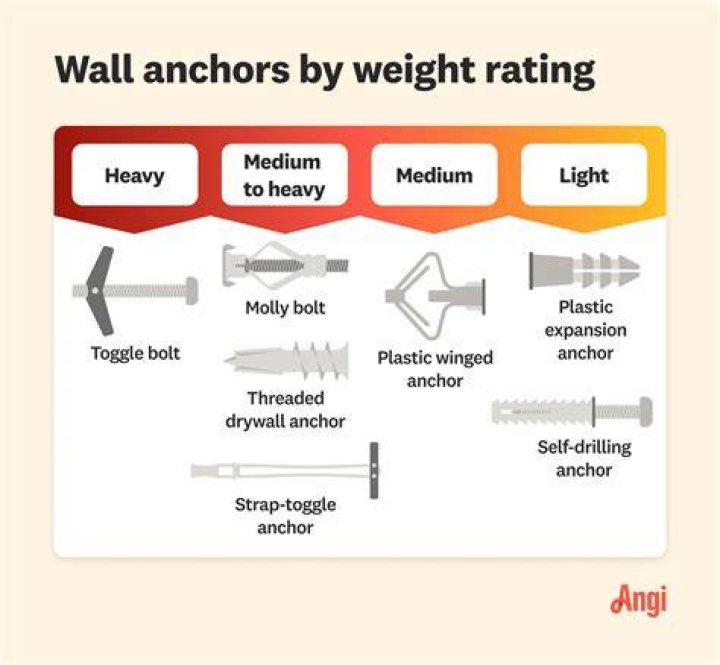

How much weight can wall anchors hold?

Plastic wing anchors are typically suitable for up to 20 pounds, while most metal toggles top out at 100 to 150 pounds. Specialized heavy-duty anchors can exceed that rating, safely holding 300 pounds or more.

How much weight can a hollow wall anchor hold?

Toggle bolts are the types of drywall anchors that can support up to 50 pounds, while steel hollow-wall anchors have a drywall anchors weight limit of up to 100 pounds.

Which is better wedge anchor or sleeve anchor?

Sleeve anchors are fairly simple to use and are primarily used in brick or block. They can be used in concrete but are not considered as strong as a wedge anchor. So, for light to medium holding applications, a sleeve anchor is a good choice.

How close to the edge of concrete can you put an anchor?

Don't Drill too Close to Edges

To avoid these disasters, don't drill any closer than 4 in. from the edge. If there's no other option, turn off the hammering action on the drill. Also, avoid wedge-type anchors.

What types of anchors can be used in hollow concrete block?

Hammer Drive Anchor – is a light duty anchor that can be used in the solid section and the hollow section if enough base material is left after the drilling process is complete.

How much weight can 4 Tapcon screws hold?

*A safety factor of 4:1 or 25% of ultimate pullout/shear value is generally accepted as a safe working load. 340 lbs.

What type of anchor is used for concrete?

These types of concrete anchors would be the Tapcon®, flat or round head sleeve anchors, or any female type anchors where a specific bolt head can be chosen to be inserted into the anchor. These female type anchors would include the: drop-in anchor, machine screw anchor, double expansion & single expansion anchors.

What is special about a Tapcon?

Tapcon anchors are less prone to head snapping, providing greater dependability on the job and saving hours of labor. The induction hardened tip easily drives through concrete while the patented Advanced Threadform Technology delivers 20% more holding power than other concrete screw anchors.

How much weight can drywall hold without a stud?

How much weight can drywall hold without a stud? Typically around 20 pounds. For heavy items, you may need to double up or hang from a stud. With a cheap plastic wall anchor, like the ones most products include in the box, drywall can hold about 20 pounds.

Can drywall anchors hold a TV?

Mounting a tv with drywall anchors or bolts is a great option if you can't drill into a stud. You'll need to use a hollow wall anchor that looks similar to a regular screw, with a butterfly toggle at the end. Once they're placed in the wall, they'll attach to the back.
