What is hysteresis loss formula?
Emily Carr What is hysteresis loss?
The hysteresis loss instead is the energy entrapped in magnetic materials exposed to a magnetic field in the form of residual magnetization—a typical behavior of FM materials—which is then lost as heat during the demagnetization step.
What is eddy current loss formula?
Eddy current loss Pe(W) in watts is equal to the product of Ke – co-efficient of eddy current in numbers, maximum flux density Bm in Wb/m2, thickness of lamination t in meters, Frequency F(Hz) in Hz and Volume of the magnetic material V(m^3) in m3.
How do you calculate hysteresis loss in transformer?
What is Hysteresis Loss?
- Definition: Hysteresis loss can be caused through the magnetization & demagnetization of the core when current supplies within the directions of forward & reverse. ...

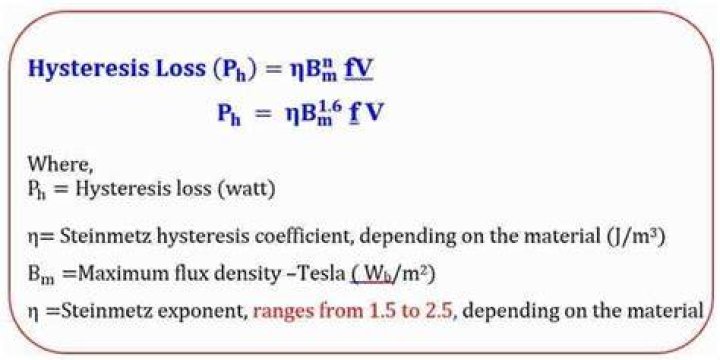

- Pb = η*Bmaxn*f *V.
- Φ = B x A weber.
- dW = NI x (dB x A) Joules.
- dW = N (Hl/n) (dB x A) Joules.
- dW = H (Al) dB Joules.
What is hysteresis law?
Hysteresis occurs in a system that involves a magnetic field. Hysteresis is the common property of ferromagnetic substances. Generally, when the magnetization of ferromagnetic materials lags behind the magnetic field this effect can be described as the hysteresis effect.
Hysteresis Losses and Hysteresis Loop - Magnetic Circuits - Basic Electrical Engineering
What is hysteresis current loss in transformer?
Hysteresis loss in a transformer occurs due to magnetization saturation in the core of the transformer. Magnetic materials in the core will eventually become magnetically saturated when they are placed in a strong magnetic field, such as the magnetic field generated by an AC current.
What is hysteresis loss in DC machine?
Hysteresis Loss in DC Machine
The constant process of magnetic reversal in the armature, consume some amount of energy which is called hysteresis loss. The percentage of loss depends upon the quality and volume of the iron.
What is BH curve?
The B-H curve or magnetisation curve is the graph plotted between magnetic flux density (B) and magnetising force (H). The B-H curve indicates the manner in which the magnetic flux density varies with the change in magnetising force.
What are the 3 types of losses in transformer?
Types of Losses in a Transformer
- Iron Losses in a Transformer. Iron losses mainly occur through the alternating flux within the transformer's core. ...
- Copper Loss. Copper losses occur because of the Ohmic resistance in the windings of the transformer. ...
- Stray Loss. ...
- Dielectric Loss. ...
- Efficiency of Transformer.
What is meant by eddy current?
Definition of eddy current
: an electric current induced by an alternating magnetic field.
What is eddy current effect?
Eddy currents are loops of electrical current induced within conductors by a changing magnetic field in the conductor according to Faraday's law of induction. Eddy currents flow in closed loops within conductors, in planes perpendicular to the magnetic field.
What is hysteresis and its examples?
Hysteresis definition
It typically refers to turn-on and turn-off points in electrical, electronic and mechanical systems. For example, if a thermostat set for 70 degrees turns on when the temperature reaches 68 and turns off at 72, the hysteresis is the range from 68 to 72.
How do you calculate iron loss?
To calculate total iron losses, we need to add up all element losses. Where W h i is hysteresis loss of element i; W e i is eddy current loss of element i; W a i is anomalous current loss of element i; and ne is number of elements.
What is DC loss?
The losses that occur in a DC Machine is divided into five basic categories. The various losses are Electrical or Copper losses (I2R losses), Core losses or Iron losses, Brush losses, Mechanical losses, Stray load losses. These losses are explained below in detail.
How are stray losses calculated?
Formulas in spreadsheet
- HV Full load current = VA / (1.732 · Volt)
- LV Full load current = VA / (1.732 · Volt)
- HV Side I2R losses = I²R · 1.5.
- LV Side I²R losses = I²R · 0.5 · 3.
- Total I² R lossses at Amb. ...
- Total Stray losses at Amb. ...
- I²R lossses at 75° C temp = ((225 + 75) · losses) / (225 + Amb.
What is the formula for brush contact loss of dc machines?
Brush friction loss = (Coefficient f friction) * Brush Pressure * Area of the brush*Commutator voltage.
What causes hysteresis loss?
Hysteresis loss is caused by the magnetization and demagnetization of the core as current flows in the forward and reverse directions. As the magnetizing force (current) increases, the magnetic flux increases.
What is hysteresis value?
Hysteresis is defined as the deviation of the contact angle from its theoretical (and mean) value due to physical phenomena like microscopic surface defects and roughness.
What is magnetic loss?
The term magnetic losses generically refers to the various energy dissipation mechanisms taking place when a magnetic material is subject to a time-varying external field H(t).
Is hysteresis same as BH curve?
A hysteresis loop (also known as a hysteresis curve) is a four-quadrant graph that shows the relationship between the induced magnetic flux density B and the magnetizing force H. It is often referred to as the B-H loop. From hysteresis loops, we can determine a number of magnetic properties about a material.
What is self induction?
Self-inductance is the property of the current-carrying coil that resists or opposes the change of current flowing through it. This occurs mainly due to the self-induced emf produced in the coil itself.
What is induced current?
The induced current is the current generated in a wire due to a changing magnetic field. An example of the induced current is the current produced in a generator which involves rapidly rotating a coil of wire in a magnetic field.
What is Ampere's law used for?
Ampere's Law is used to : Determine the magnetic induction due to a long current-carrying wire.
